The WAUG PARTNER API is an API that has been released for the use of a series of functions provided by the WAUG service.
-
The latest version of WAUG PARTNER API is v1.0.0.
-
The request/response for WAUG PARTNER API is processed over HTTP/1.1,
and all access must be
HTTPS.
The data transfer format is
JSON(JavaScript Object Notation),
and UTF-8
for text encodings.
-
WAUG Open API provides BETA environment and PRODUCTION environment.
-
Commonly, the BETA environment is used with the purpose of testing in the process of development. Please note that this does not apply with PRODUCTION environment.
-
Please check the following URLs for BETA environment and PRODUCTION environment.
JSON is used for sending and receiving data and its
standard response format is as follows.
{
"responseCode": "000",
"message": "this is message",
"data": { //or [] },
"count": 1,
"version": "v1",
"uri": "/v1/test",
"service": "WAUG_PARTNER_API"
}
| Attribute |
Type |
Description |
| responseCode |
string |
A response code that expresses the status of the response. Please refer to
“API Response Code” section below.
|
| message |
string |
Response message |
| data |
object, array |
Response data. Expressed as a JSON object or JSON array. |
| count |
int |
Total response data count |
| version |
string |
WAUG PARTNER API version |
| uri |
string |
Requested URI |
| service |
string |
WAUG PARTNER API service name |
Response code used for the "responseCode" attribute of the WAUG PARTNER API response
standard format.
| Category |
Code |
Description |
| Success |
000 |
|
| Failure |
100 |
Invalid request |
| 101 |
Invalid authentication |
| 102 |
Invalid parameter |
| 103 |
Data does not exist |
| 104 |
There is not enough balance |
| 105 |
Product information is modified |
| 106 |
Invalid order information |
| 107 |
This product is non-refundable |
| 108 |
Response timed out |
| 109 |
Price mismatch |
| 110 |
Exceeded upload file max size |
| 111 |
Exceeded api request rate limit |
To use the WAUG PARTNER API, you need to create an account,
Client Id, and
Client Secret
to obtain an authentication token.
Creating an account, Client Id, and Client Secret are
currently processed through a separate procedure. Please contact the person in
charge via
email.
All requests, except for the function to issue authentication tokens, require
authentication tokens, which are sent in addition to the
Authorization header
during the HTTP request header.
The process of issuing an authentication token is as
follows.
1. Client Id and Client Secret for issuing authentication
tokens are issued through a separate procedure.
2. Obtain authentication tokens through the authentication
token issuing function of the WAUG PARTNER API. It is a request using Client Id and
Client Secret following the
basic method
of HTTP authentication. Below is an example of using Curl.
ex)
curl -X POST -u {Client Id}:{Client Secret} {WAUG PARTNER API URL}/v1/token
The responses are as follows
ex)
{
"accessToken": "ExampleTokenValue",
"tokenType": "bearer",
"expiresIn": "43199"
}
3. Transmits the value of the
"accessToken" attribute in the authentication token response by adding it to the
Authorization header as follows
ex)
Authorization: Bearer ExampleTokenValue
The API request is limited to 100 times/10 seconds. The
over requests will receive response code 111.
This blocking is released by every 10 seconds.
example) request of 100 times /6 seconds(success) -> all
requests receive 111 response for 4 seconds(blocked) -> request success
exception) request of reservation creation api
Currently, payment of the WAUG PARTNER API is made by deducting the balance of the
advance payment. If the balance is less than the amount of the payment, you cannot
make an order.
For payment inquiries, please contact the person in charge via
email.
You can use the WAUG PARTNER API to view product
information in WAUG.
WAUG's product information is expressed in a hierarchical structure and classified
into goods, goods options, and product options.

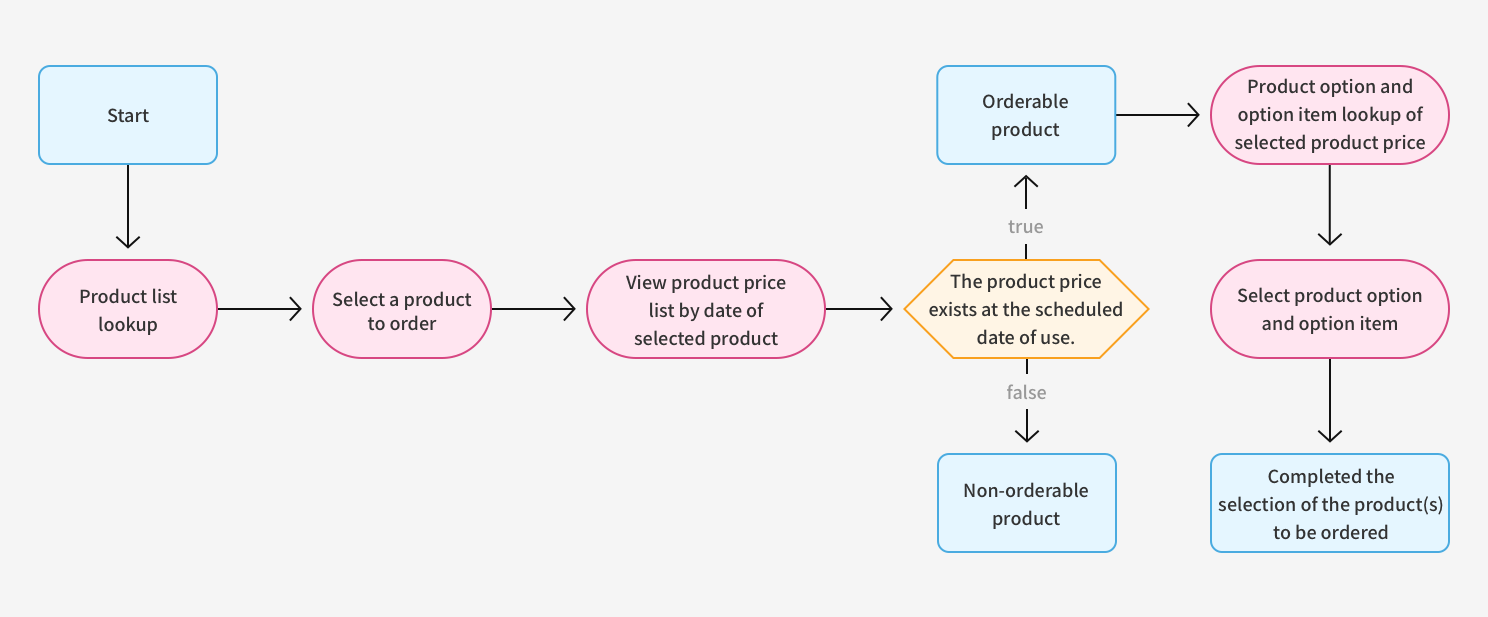

An example of the process of selecting an order is shown
below.
1. The user selects a desired product from the product list.
2. The user checks the varying prices depending on the dates to determine the price
of the product for the intended date of use.
3-1. If the product price exists for the desired date, the selected product is
available to order for the scheduled date of use.
3-2. If the product price does not exist for the desired date, the selected product
is not orderable on the scheduled date of use.
4. Select the desired product option and product option
item from the orderable product price.
5. Use the WAUG PARTNER API function to view information
on the selected product and its options.
There is information that must be entered when making an order for the product.
These order input information will vary depending on the product.
It consists of order input information group and order input information field.
Order input information for one product includes multiple groups, and a single group
contains multiple fields.
Below is an example of order input information for one
product.
[
{
"groupCategory": "ORDER",
"fields": [
{
"fieldId": 4,
"fieldName": "Name on the passport",
"fieldExplain": "",
"fieldPlaceholder": "",
"fieldOption": "",
"fieldType": "engname",
"required": true
},
{
"fieldId": 2,
"fieldName": "Mobile phone number",
"fieldExplain": "",
"fieldPlaceholder": "",
"fieldOption": "",
"fieldType": "mobile",
"required": true
},
{
"fieldId": 8,
"fieldName": "email",
"fieldExplain": "",
"fieldPlaceholder": "",
"fieldOption": "",
"fieldType": "email",
"required": true
}
]
},
{
"groupCategory": "GOODS",
"fields": [
{
"fieldId": 67,
"fieldName": "Hotel name",
"fieldExplain": "Please enter the hotel name",
"fieldPlaceholder": "",
"fieldOption": "",
"fieldType": "text",
"required": true
}
]
},
{
"groupCategory": "EACH",
"fields": [
{
"fieldId": 8,
"fieldName": "email",
"fieldExplain": "",
"fieldPlaceholder": "",
"fieldOption": "",
"fieldType": "email",
"required": true
}
]
}
]
Category of order input information group
The order input information group is divided into three categories, each consisting
of a different group: The categories are described below.
| Category |
Description |
| ORDER |
This is the common order input information that corresponds to every
order.
|
| GOODS |
This is the order input information that applies to a particular ordered
product.
|
| EACH |
This is the order input information that applies to a particular ordered
product and must be entered according to the quantity ordered.
|
Field type of order input information
The order input information field is included in one of
several types. The field type is described below.
| Name of type |
Description |
Example |
text
textarea
text_short
text_middle |
Input text |
ex) ExampleText |
| date |
Enter the date data expressed in the form "yyyy-MM-dd" |
ex) 1980-01-22 |
| birthdate |
Enter the birth date expressed in the form “yyyy-mm-dd” |
ex) 1980-01-22 |
| email |
Enter the email address |
ex) guest1@waug.com |
| engname |
Enter name on passport |
ex) HONG GILDONG |
| time |
Enter the time data expressed in the form “HH:mm:ss” |
ex) 09:00 |
| mobile |
Enter the mobile phone number |
ex) 8201012341234 |
| tel |
Enter the telephone number |
ex) 021231111 |
| number |
Enter the number |
ex) 7 |
| radio |
Field type expressed as radio button on screen |
|
| select |
Field type expressed as select box on screen |
|
| checkbox |
Field type expressed as checkbox on screen |
|
An order can be made by using WAUG PARTNER API
It provides the function to determine if the order creation information that user
requests is orderable.
WAUG's order information is hierarchically composed of Order, Order Goods, and Order
Options.
Orders contain common order information.
Order Goods contains information about the goods being
ordered. Typically there is a product ID.
The Order Option contains the option and option item information for the product to
be ordered. Typically, there is a product option ID, an option item ID.
The input information for an order is included in the order or in the ordered
product, depending on the group category.

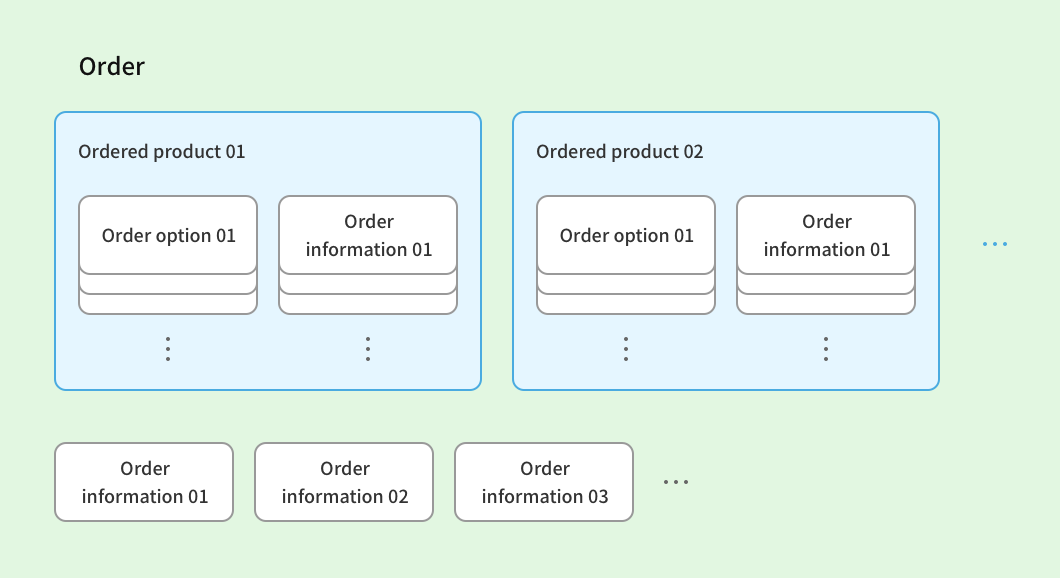

When creating an order, request information must be entered by the same
configuration as above and it can be described by the following image below.
An example of the order creation
request information is shown below.
ex)
{
"locale": "ko",
"orderGoods": [
{
"goodsId": 107278,
"useDate": "2019-04-01",
"orderOptions": [
{
"goodsOptionId": 28919,
"goodsOptionItemId": 61849,
"quantity": 1,
"price": 37080,
"goodsOptionTimeslotId": 0
},
{
"goodsOptionId": 28919,
"goodsOptionItemId": 61850,
"quantity": 2,
"price": 22000,
"goodsOptionTimeslotId": 0
}
],
"orderInfos": [
{
"fieldId": 26,
"groupCategory": "GOODS",
"values": [
"ExampleGoodsOrderInfo1"
]
},
{
"fieldId": 63,
"groupCategory": "GOODS",
"values": [
"ExampleGoodsOrderInfo1"
]
},
{
"fieldId": 4,
"groupCategory": "EACH",
"values": [
"Foo", "Bar", "Example"
]
}
]
},
{
"goodsId": 109329,
"useDate": "2019-04-05",
"additionalInput": "this is additional input example.",
"orderOptions": [
{
"goodsOptionId": 31451,
"goodsOptionItemId": 74509,
"quantity": 1,
"price": 20580.0,
"goodsOptionTimeslotId": 0
}
],
"orderInfos": [
{
"fieldId": 6,
"groupCategory": "GOODS",
"values": [
"ExampleGoodsOrderInfo1"
]
}
]
}
],
"orderInfos": [
{
"fieldId": 1,
"groupCategory": "ORDER",
"values": [
"ExampleOrderUserKoreanName"
]
},
{
"fieldId": 4,
"groupCategory": "ORDER",
"values": [
"ExampleOrderUserEnglishName"
]
},
{
"fieldId": 2,
"groupCategory": "ORDER",
"values": [
"ExampleOrderUserContact"
]
},
{
"fieldId": 8,
"groupCategory": "ORDER",
"values": [
"example@example.com"
]
}
]
}

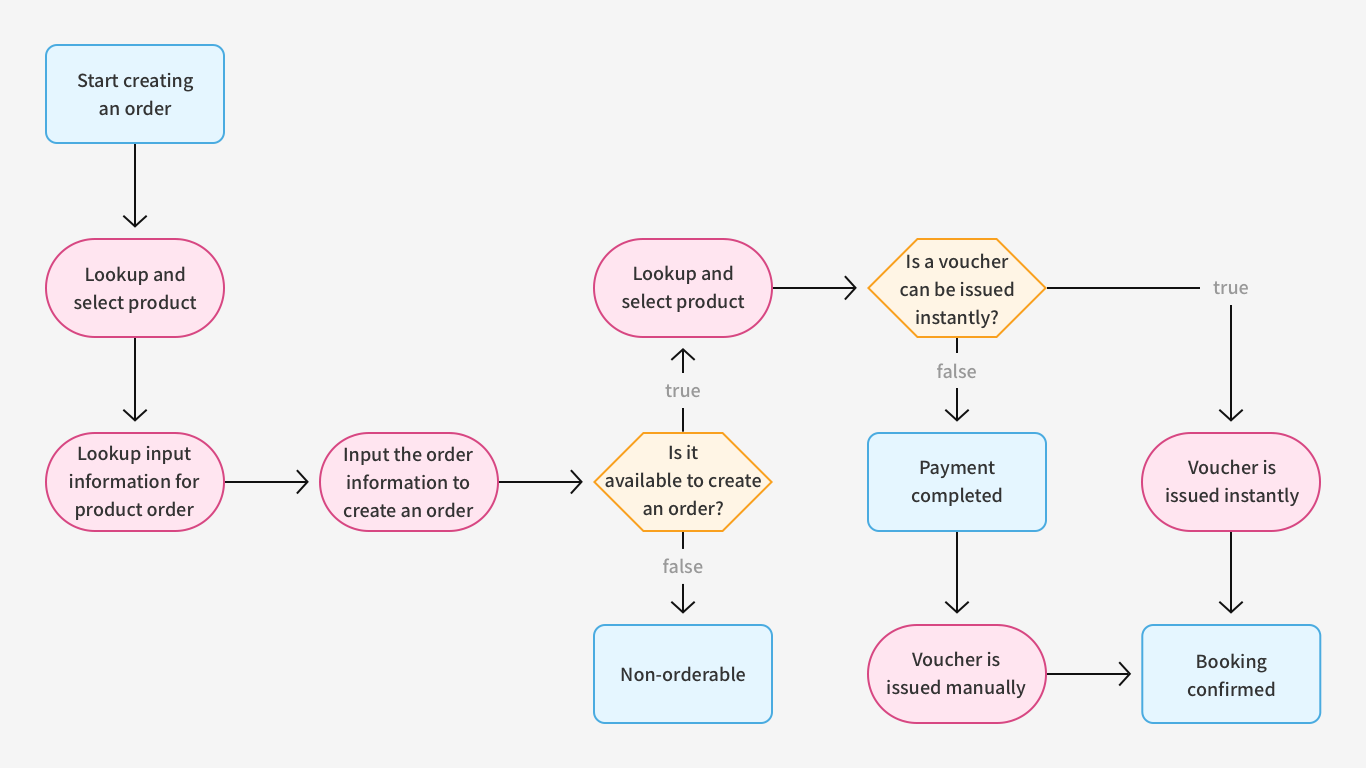

An example of the process of creating an order is shown below.
1. User looks up the information of the product and select
the product to order.
2. User looks up the order input information of the
product to order.
3. User completes the order creation request information
in a proper format.
4. Check whether the order creation request information
the user created is orderable.
5. If the order creation request information is available,
the request to create an order is made.
6-1. An order is created if it is successfully verified by
the WAUG PARTNER API.
6-2. If the validation fails in the WAUG PARTNER API, a
non-orderable response is returned.
7. After an order creation in WAUG PARTNER API, instant
voucher issuance availability will be checked.
8-1. If the voucher is issued instantly, the voucher will
be issued immediately.
8-2. If the voucher cannot be issued instantly, the
voucher will be issued after a certain amount of time.
When ordering from the WAUG PARTNER API, you can order
multiple products(=goods) in a bundle at once.
Therefore, there is an order status for order and
there is an order status for each ordered product(=goods).
The following is a description of the order good's
status.
| Code |
Status |
Description |
| STATUS_WAIT |
waiting payment |
Payment is not completed and an order is created |
| STATUS_CANCEL |
order cancelled |
Payment is not completed. an order is cancelled after being created. |
| STATUS_PAID |
order completed |
Payment is completed and an order is created |
| STATUS_IN_PROGRESS |
voucher issuance in progress |
A voucher issuance is in progress |
| STATUS_CONFIRMED |
voucher issued |
A voucher issuance is completed |
| STATUS_REFUND_REQUESTED |
refund requested |
A refund for the following order is requested |
| STATUS_REFUND_COMPLETED |
refund completed |
The refund request has been processed and the refund has been completed |
| STATUS_PARTIAL_REFUND_COMPLETED |
partial refund completed |
The partial refund request has been processed and the partial refund has
been completed
|
The following is a description of the order's status.
| Code |
Status |
Description |
| STATUS_WAIT |
waiting payment |
Payment is not completed and an order is created |
| STATUS_PAID |
order completed |
Payment is completed and an order is created |
| STATUS_REFUND_REQUESTED |
refund requested |
A refund for all of ordered products is requested |
| STATUS_PARTIAL_REFUND_REQUESTED |
partial refund requested |
A refund for part of ordered products is requested |
| STATUS_REFUND_COMPLETED |
refund completed |
The refund request for all of ordered products has been processed and the
refund has been completed
|
| STATUS_PARTIAL_REFUND_COMPLETED |
partial refund completed |
The refund request for part of ordered products has been processed and the
partial refund has
been completed
|
You can request a refund of a specific order with the WAUG
PARTNER API.
This function will change the status of the order to “refund requested” and the
actual refund process will be carried out through a separate procedure.
If any of the items included in the order are non-refundable, the request for a
refund will be rejected.
Whether the product is refundable or not can be determined
depending on the
refundable attribute

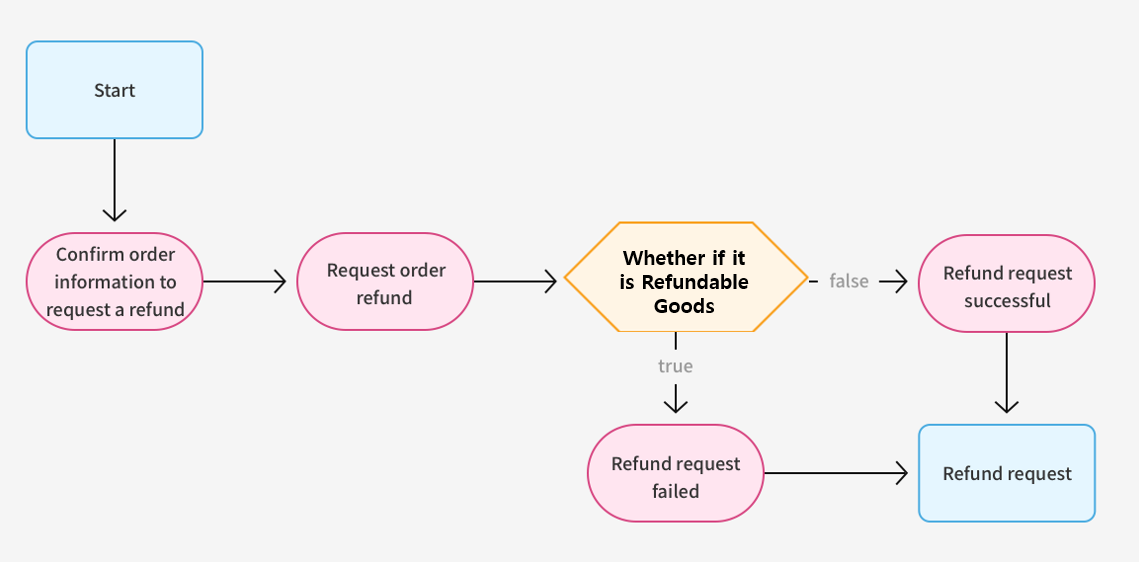

An example of the process of requesting a refund for a
particular order is shown below.
1. User checks an order to get a refund.
2. User requests a refund by inputting order number.
3. Through WAUG Open API, it will be checked if any of the
products included in the refund-requested order are non-refundable.
4-1. If it is refundable product, the refund
request succeeds.
4-2. If it is a non-refundable item, the request for a
refund fails.
The WAUG PARTNER API provides Webhook function for
specific events.
Please contact the person in charge via
email to inquire about the Webhook function.
Product Information Change Notification
Webhook
Notification Webhook is provided when the product
information is modified.
The contents of the Webbook are as follows
{
"goodsId": 1,
"type": "GOODS_UPDATE",
"updatedAt": {
"date": "yyyy-MM-dd HH:mm:ss.SSS",
"timezone_type": 3,
"timezone": "Asia/Seoul"
}
}
However, product information synchronization is recommended at least once a day
since product information modification occur frequently.
Order Status Change Notification Webhook
Notification Webhook is provided when the order status
is modified.
The contents of the Webbook are as follows
{
"orderNumber": "exampleOrderNumber",
"orderGoodsId": 1,
"type": "ORDER_UPDATE",
"orderStatus": "STATUS_CONFIRMED",
"updatedAt": {
"date": "yyyy-MM-dd HH:mm:ss.SSS",
"timezone_type": 3,
"timezone": "Asia/Seoul"
}
}
However, if it is changed using the refund request function in the WAUG PARTNER
API, the Webbook will not be sent.
Check for
example of order status on explanation of
orderStatus.
-
2019-04-02 : Publication of WAUG PARTNER API Document v1.0.0
-
2019-11-25 : Fix bug that order good's status is not "STATUS_REFUND_REQUESTED" when status of order is request refund.
-
2019-11-25 : Fix when /v1/orders , v1/orders/{orderNumber}, v1/orders-partner/{partnerOrderNumber}, /v1/orders/{orderNumber}/refund-request call, return order's status which has 5 enum values
-
2019-12-16 : Add api request throttling (100 times / 10 seconds)
-
2020-01-09 : Add refund-request api v2 (refund-request api v1 will be deprecated '2020-03-17')
-
2020-02-17 : fix refund-request api v2(fix reqeust parameters)
-
2020-04-02 : change /v1/goods/{goodsId}/comments api max page size(10000->100)
-
2020-04-06 : Close refund-request api v2 temporarily(it will reopen after updating system developments)
-
2020-06-10 : Reopen refund-request api v2 (only for slack alaram)
-
2020-10-12 : /v1/orders call, add startDate and endDate as request parameter
-
2021-04-09 : /v1/goods/{goodsId} call, add availableTime to the Response field
-
2021-12-22 : /v1/goods/{goodsId} call, add notification to the Response field
